$26.60 – $38.05

Watlow Style 20 Straight Sheath Rigid Thermocouples and Style 21 & 22 Bent Rigid Thermocouples provide protection and accurate placement through bulkheads or platens. Use with a compression fitting for a water tight immersion application. The Style 21 & 22 Bent Rigid tube offers protection and accurate lead placement around machinery and in tight spaces. This page is for Style 20 Type J Thermocouples. If you need Type K click here Watlow Tube Thermocouple-Type K.

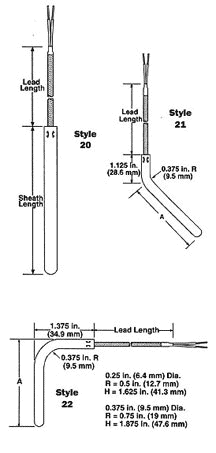

Watlow-Thermocouple-20-spec

IF THE THERMOCOUPLE YOU NEED IS NOT SHOWN, PLEASE TRY OUR
TC20 Tube Thermocouple Build-A-Product
OR EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM

Current lead time is 8-10 weeks, FOB: Carson, CA.



SKU: N/A Categories: ,

All Variations

Part No.DiameterSheath LengthLeadsDescriptionPriceQuantityAdd to Cart
20CJFGB012A1/8"1"12" FiberglassWatlow Style 20 Thermocouple$26.60
20CJFGB072A1/8"1"72" FiberglassWatlow Style 20 Thermocouple$33.85
20CJFGD012A1/8"2"12" FiberglassWatlow Style 20 Thermocouple$26.60
20CJFGD072A1/8"2"72" FiberglassWatlow Style 20 Thermocouple$33.85
20CJFGM012A1/8"6"12" FiberglassWatlow Style 20 Thermocouple$26.60
20CJFGM072A1/8"6"72" FiberglassWatlow Style 20 Thermocouple$33.85
20CJSGB012A1/8"1"12" SS BraidWatlow Style 20 Thermocouple$27.30
20CJSGB072A1/8"1"72" SS BraidWatlow Style 20 Thermocouple$38.05
20CJSGD012A1/8"2"12" SS BraidWatlow Style 20 Thermocouple$27.30
20CJSGD072A1/8"2"72" SS BraidWatlow Style 20 Thermocouple$38.05
20CJSGM012A1/8"6"12" SS BraidWatlow Style 20 Thermocouple$27.30
20CJSGM072A1/8"6"72" SS BraidWatlow Style 20 Thermocouple$38.05
20DJFGB012A3/16"1"12" FiberglassWatlow Style 20 Thermocouple$26.60
20DJFGB072A3/16"1"72" FiberglassWatlow Style 20 Thermocouple$33.85
20DJFGD012A3/16"2"12" FiberglassWatlow Style 20 Thermocouple$26.60
20DJFGD072A3/16"2"72" FiberglassWatlow Style 20 Thermocouple$33.85
20DJFGM012A3/16"6"12" FiberglassWatlow Style 20 Thermocouple$26.60
20DJFGM072A3/16"6"72" FiberglassWatlow Style 20 Thermocouple$33.85
20DJSGB012A3/16"1"12" SS BraidWatlow Style 20 Thermocouple$27.30
20DJSGB072A3/16"1"72" SS BraidWatlow Style 20 Thermocouple$38.05
20DJSGD012A3/16"2"12" SS BraidWatlow Style 20 Thermocouple$27.30
20DJSGD072A3/16"2"72" SS BraidWatlow Style 20 Thermocouple$38.05
20DJSGM012A3/16"6"12" SS BraidWatlow Style 20 Thermocouple$27.30
20DJSGM072A3/16"6"72" SS BraidWatlow Style 20 Thermocouple$38.05

Achieving specified temperature levels is critical to industrial processes. It’s imperative that temperature sensors are designed and manufactured to exacting specifications for accuracy and reliability. Watlow is committed to providing you with the most accurate, high-integrity temperature measurement products possible. Watlow offers from stock the greatest breadth of contact temperature measurement sensors and related components. Whatever your temperature sensing needs, Watlow can provide the optimum configuration, with the accuracy you require.

TERMINATION OPTIONS include: 2-1/2” split leads, spade lugs, 1/2” BX connector & space lugs, 1/4” & 3/16” push on female disconnect, standard size male & female TC plugs, miniature size male & female TC plugs.

20CJFGB012A | 20CJFGB072A | 20CJFGD012A | 20CJFGD072A | 20CJFGM012A | 20CJFGM072A | 20CJSGB012A | 20CJSGB072A | 20CJSGD012A | 20CJSGD072A | 20CJSGM012A | 20CJSGM072A | 20DJFGB012A | 20DJFGB072A | 20DJFGD012A | 20DJFGD072A | 20DJFGM012A | 20DJFGM072A | 20DJSGB012A | 20DJSGB072A | 20DJSGD012A | 20DJSGD072A | 20DJSGM012A | 20DJSGM072A
