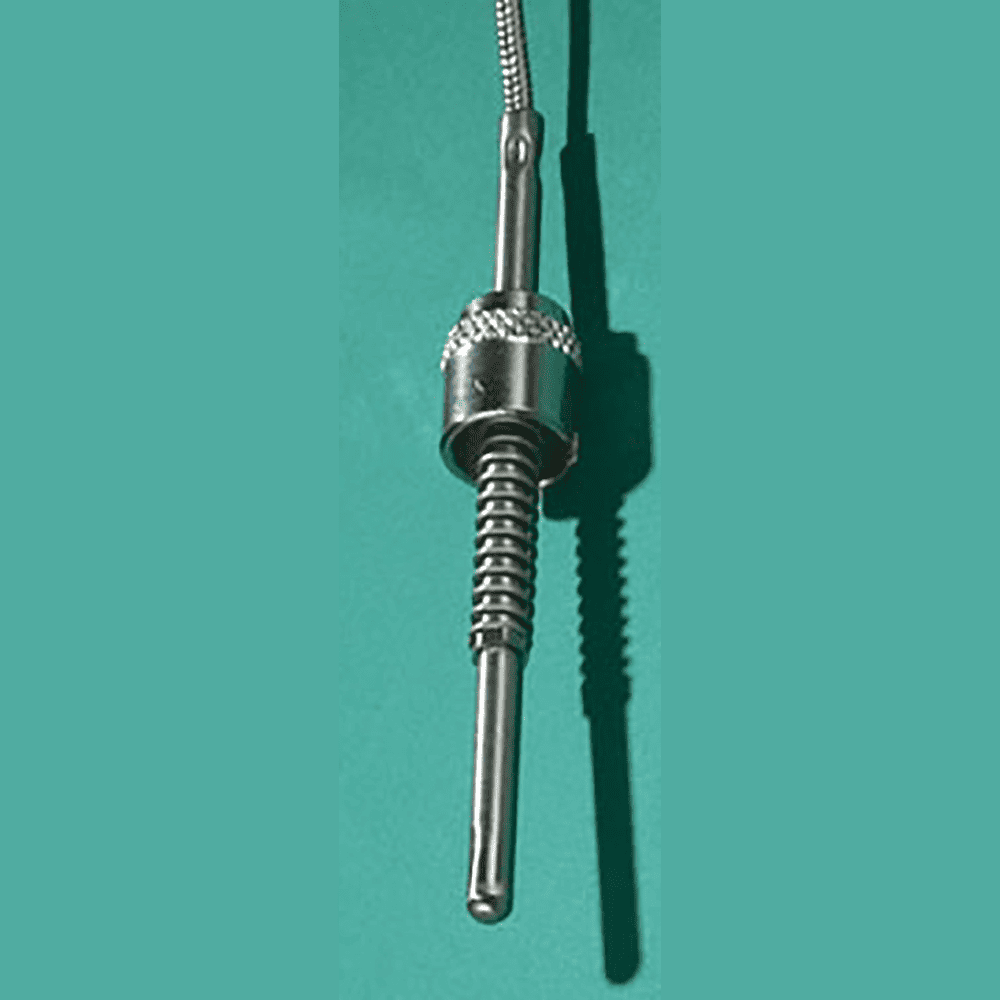

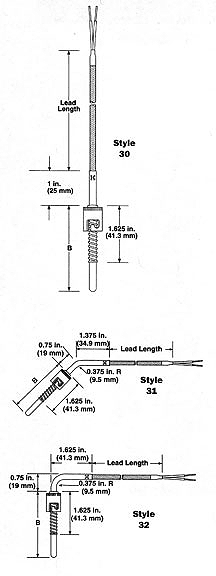

Watlow Style 30 Straight Sheath Rigid Fixed Bayonet Thermocouples and Style 31 & 32 Bent Sheath Fixed Bayonet Thermocouples provide protection and accurate placement through bulkheads or platens. The bayonet fitting on the thermocouple twist locks onto a bayonet adapter for easy installation and removal. Spring pressure on the junction tip assures fast response time. This style of bayonet fitting is quick connecting and allows leads to exit with a protective sheath. The Style 31 & 32 Bent Sheath Fixed Bayonet thermocouples offer protection and accurate lead placement around machinery and in tight spaces.
Achieving specified temperature levels is critical to industrial processes. It’s imperative that temperature sensors are designed and manufactured to exacting specifications for accuracy and reliability. Watlow is committed to providing you with the most accurate, high-integrity temperature measurement products possible. Watlow offers from stock the greatest breadth of contact temperature measurement sensors and related components. Whatever your temperature sensing needs, Watlow can provide the optimum configuration, with the accuracy you require.
TERMINATION OPTIONS include: 2-1/2” split leads, spade lugs, 1/2” BX connector & space lugs, 1/4” & 3/16” push on female disconnect, standard size male & female TC plugs, miniature size male & female TC plugs.
30CJFGD012A | 30CJFGH012A | 30CJFGM012A | 30CJSGD012A | 30CJSGH012A | 30CJSGM012A | 30DJFGD012A | 30DJFGH012A | 30DJFGM012A | 30DJSGD012A | 30DJSGH012A | 30DJSGM012A | 30CKFGD012A | 30CKFGH012A | 30CKFGM012A | 30CKSGD012A | 30CKSGH012A | 30CKSGM012A | 30DKFGD012A | 30DKFGH012A | 30DKFGM012A | 30DKSGD012A | 30DKSGH012A | 30DKSGM012A
