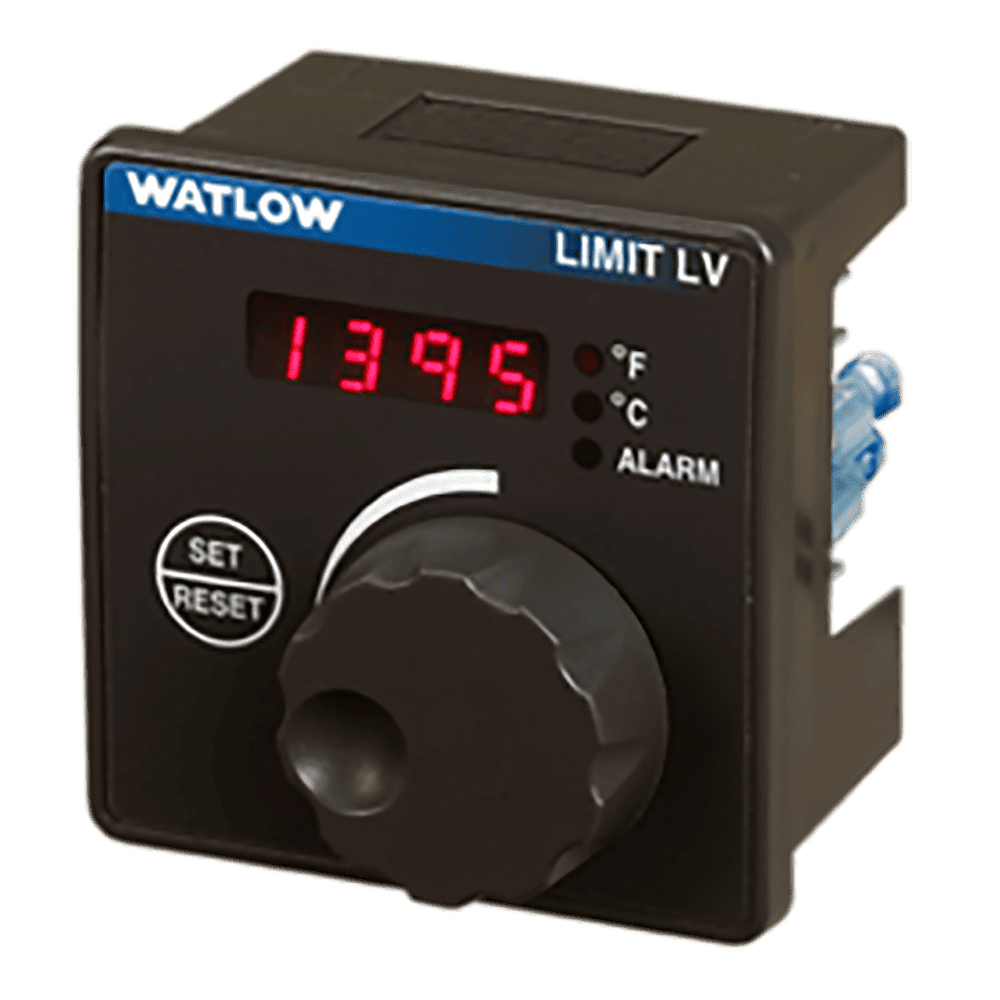

FEATURES & BENEFITS:
- Fixed or adjustable set points – Provide tamper-proof operation & offer control flexibility
- Four character LED display – Improves set point selection accuracy
- Multiple mounting options – Minimize installation time
- Heat or cool operation – Provides application flexibility
- High or low limit with auto or manual reset – Provides application flexibility
- Fahrenheit or celsius operation with indication – Offers application flexibility
- Sensor break protection – Provides positive system shutdown
- Agency approvals – Meet certification requirements/compliance
- Microprocessor based technology – Ensures accurate repeatable control
MODEL NUMBER GUIDE:
| L | V | __ | __ | __ | __ | __ | __ | __ | __ | __ | __ | __ | __ | __ |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 1-2. Control Model | |
| LV = Series LV – Limit control with 8 amp relay output, rotary encoder with tactile key order option, four character seven segment display, 1/8 DIN square, reset switch. | |
| 3. Power Supply | |
| C = 120VAC | |
| E = 230-240V~(ac) | |
| G = 24VAC | |
| 4. Package | |
| 1 = Panel mount, 1/8 DIN square – spade terminals | |
| 2 = DIN-rail mount – spade terminals | |
| 5 = Panel mount, 1/8 DIN square – screw terminals | |
| 6 = DIN-rail mount – screw terminals | |
| A = NEMA 4X Panel mount, tactile keys – spade terminals | |
| B = DIN-rail mount, tactile keys – spade terminals | |
| C = NEMA 4X Panel mount, tactile keys – screw terminals | |
| D = DIN-rail mount, tactile keys – screw terminals | |
| 5. Sensor Type and Scale | |
| H = T/C Type J Fahrenheit (-346 to 1900°F) | |
| J = T/C Type J Celsius (-210 to 1038°C) | |
| K = T/C Type K Fahrenheit (-454 to 2500°F) | |
| L = T/C Type K Celsius (-270 to 1370°C) | |
| M = T/C Type T Fahrenheit (-454 to 750°F) | |
| N = T/C Type T Celsius (-270 to 400°C) | |
| P = RTD Fahrenheit (-328 to 1472°F) | |
| R = RTD Celsius (-200 to 800°C) | |
| S = T/C Type E Fahrenheit (-328 to 1470°F) | |
| T = T/C Type E Celsius (-200 to 800°C) | |
| 6. Limit Type | |
| U = High limit manual reset | |
| W = High limit auto reset | |
| Y = Low limit manual reset | |
| Z = Low limit auto reset | |
| 7-10. Low Set Point Operating Temperature Range Value (enter low set point value in 4 digits, i.e. 0450 or 1370) A minus sign (-) is used in the left most digit to indicate a negative temperature value i.e. -450. |
|
| 11-14. High Set Point Operating Temperature Range Value (enter high set point value in 4 digits, i.e. 0450 or 1370) A minus sign (-) is used in the left most digit to indicate a negative temperature value i.e. -450. |
|
| 15. Overlay/Custom Options | |
| A = Standard with Watlow logo | |
| 1 = Standard without Watlow logo | |
LVC5HU00321000A | LVC5HW00321000A | LVC5KU00321000A | LVC5KW00321000A | LVC6HU00321000A | LVC6HW00321000A | LVC6KU00321000A | LVC6KW00321000A | LVCCHU00321000A | LVCCHW00321000A | LVCCKU00321000A | LVCCKW00321000A | LVE5HU00321000A | LVE5HW00321000A | LVE5KU00321000A | LVE5KW00321000A | LVE6HU00321000A | LVE6HW00321000A | LVE6KU00321000A | LVE6KW00321000A | LVECHU00321000A | LVECHW00321000A | LVECKU00321000A | LVECKW00321000A
