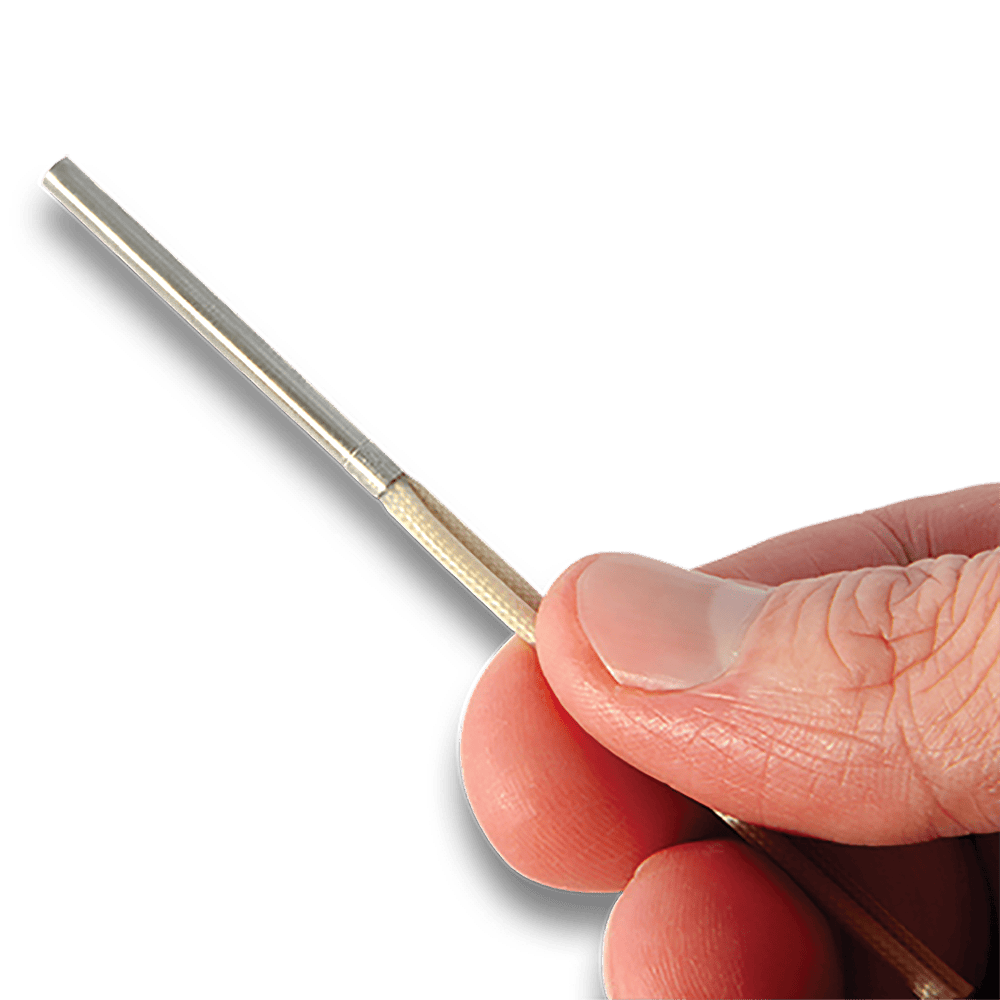

The Watlow Firerod® Cartridge Heater revolutionized the heating element industry in 1954 when it was patented as the first swaged cartridge heater. With premium materials and tight manufacturing controls, the Firerod heater continues to provide superior heat transfer, uniform temperatures and resistance to oxidation and corrosion even at high temperatures.USE THE BUILD-A-PRODUCT PAGES TO SELECT THE FIREROD YOU NEED:
1/8 Diameter: Firerod C1E-C2A Build-A-Product 1-1/4″ to 2″ Lengths
1/4″ Diameter: Firerod E1A-E8A Build-A-Product 1″ to 8″ Lengths
3/8″ Diameter: Firerod G1A-G2A Build-A-Product 1″ to 2″ Lengths
3/8″ Diameter: Firerod G2E-G3J Build-A-Product 2-1/4″ to 3-1/2″ Lengths
3/8″ Diameter: Firerod G4A-G6J Build-A-Product 4″ to 6-1/2″ Lengths
3/8″ Diameter: Firerod G7A-G12P Build-A-Product 7″ to 12-13/16 Lengths
1/2″ Diameter: Firerod J1A-J2N Build-A-Product 1″ to 2-3/4″ Lengths
1/2″ Diameter: Firerod J3A-J4J Build-A-Product 3″ to 4-1/2″ Lengths
1/2″ Diameter: Firerod J5A-J7J Build-A-Product 5″ to 7-1/2″ Lengths
1/2″ Diameter: Firerod J8A-J18A Build-A-Product 8″ to 18″ Lengths
5/8″ Diameter: Firerod L1E-L6J Build-A-Product 1-1/4″ to 6-1/2″ Lengths
5/8″ Diameter: Firerod L7A-L36A Build-A-Product 7″ to 36″ Lengths
3/4″ Diameter: Firerod N2E-N36A Build-A-Product 2-1/4″ to 36″ Lengths
Watlube: Watlube Heater Release Agent
IF THE FIREROD YOU NEED IS NOT LISTED, PLEASE EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM
Features of the Watlow Firerod Cartridge Heater:
- Part temperatures to 1400°F
- Nickel-chromium resistance wire, precisely wound and centered in the unit, assures even, efficient distribution of heat to the sheath.
- Magnesium oxide insulation of specific grain and purity, swaged to the proper density, results in high dielectric strength and contributes to faster heat-up.
- Incoloy sheath resists oxidation and corrosion from many chemicals, heat and atmospheres.
- Minimal spacing between the element wire and sheath results in lower internal temperature, better heat transfer, giving you the ability to design with fewer or smaller heaters that operate more efficiently.
- Swaged cartridge tightens the sheath around the MGO insulation and the nichrome element wires for more efficient heat transfer and longer heater life.
- UL & CSA approved flexible stranded lead wires with silicone-fiberglass oversleeve insulate wires to 480°F.
Watlow’s patented LA–or Lead Adapter–Modification Method allows stock Firerods to be modified from stock with 13 different lead configurations (some options not available on 1/4″ diameter). LA configurations are permanently attached to the heater. Most of these configurations can be ordered with no-heat extensions or optional mounting methods like flanges, threaded fittings, and locating rings. On LA stock, units are shipped either same or next day.

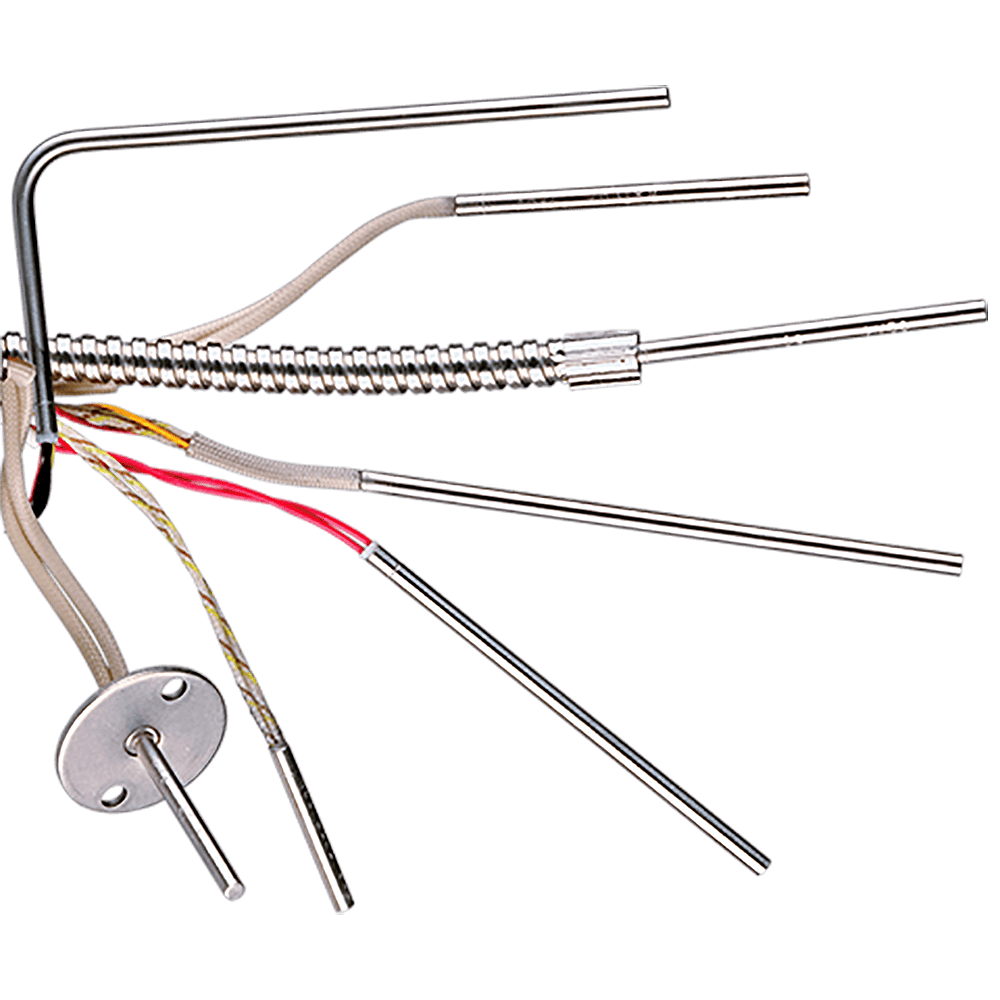

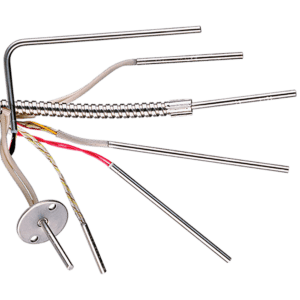

13 Terminations Available with LA Method:
- Swaged-in flexible leads
- Right angle leads
- Straight stainless steel braid
- Right angle stainless steel braid
- Right angle stainless steel braid with teflon leads & seal
- Straight stainless steel hose
- Right angle stainless steel hose
- Straight stainless steel hose with teflon leads & seal
- Right angle stainless steel hose with teflon leads & seal
- Teflon leads & seal
- Silicone rubber seal & leads
- SJO cord
- MI Leads
