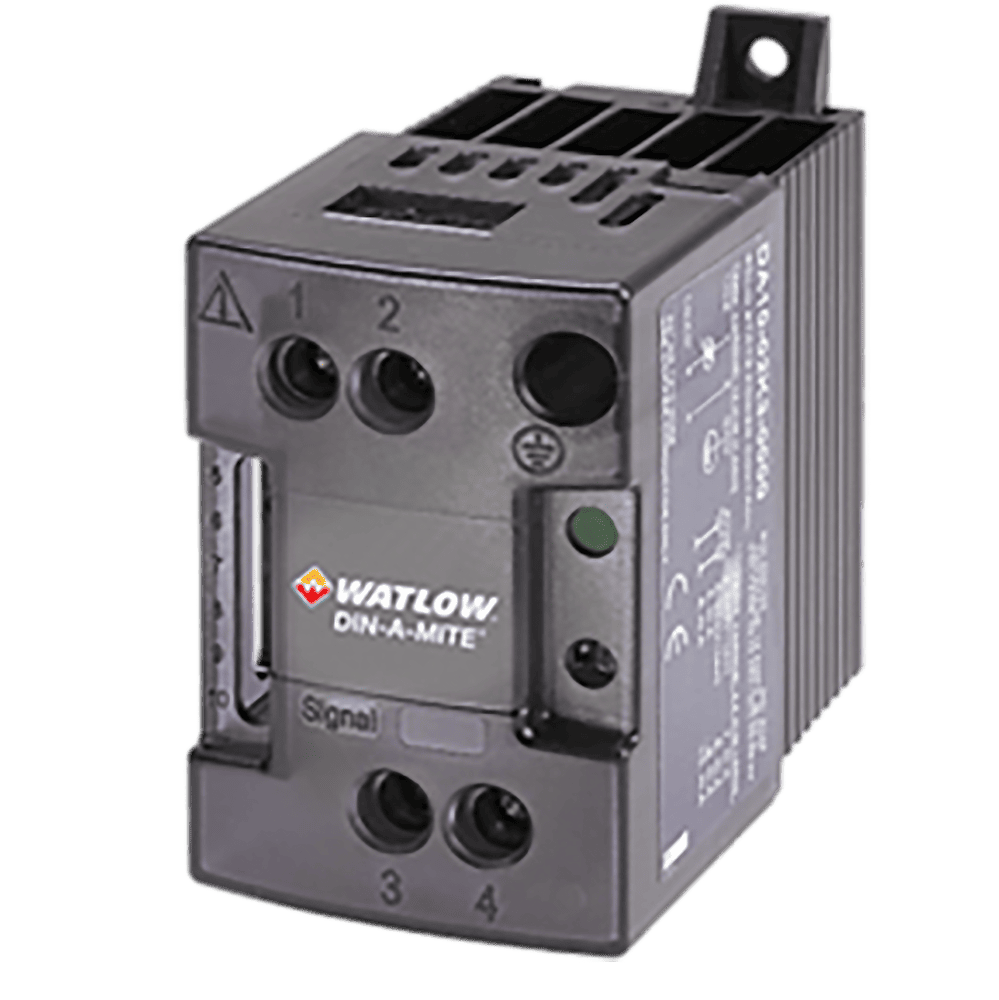

The DIN-A-MITE® A power controller provides a low-cost, highly compact and versatile solid state option for controlling electric heat. This controller is designed and manufactured with the quality features expected from Watlow. DIN-rail and panel mounting is standard on every controller. DA10 Zero cross solid state power controller. 1 phase, 1 controlled leg. Natural convection cooling only. Up to 25 amps.IF THE DIN-A-MITE YOU NEED IS NOT SHOWN, PLEASE EMAIL US FOR ASSISTANCE SALES@WESTCOASTPLASTICS.COM
Features include single-phase zero cross switching up to 25 amperes at 600VAC (see rating curve). A unique integrated design removes the guesswork associated with selecting a proper heat sink and adequate terminations for the application.
Variable time-base, 4-20mA process control and VAC/VDC input contactor versions are available. All options are model number dependent and factory configurable. This power controller also includes 200KA short circuit current rating (SCCR) tested up to 480VAC to minimize damage in the event of a short circuit when used with required fusing.
DA10-24C0-0000 | DA10-24F0-0000 | DA10-24K1-0000 | DA10-24K2-0000 | DA10-24K3-0000 | DA10-60C0-0000 | DA10-60F0-0000 | DA10-60K1-0000 | DA10-60K2-0000 | DA10-60K3-0000 | DA10-02C0-0000 | DA10-02F0-0000 | DA10-02K1-0000 | DA10-02K2-0000 | DA10-02K3-0000
