$100.25 – $382.10

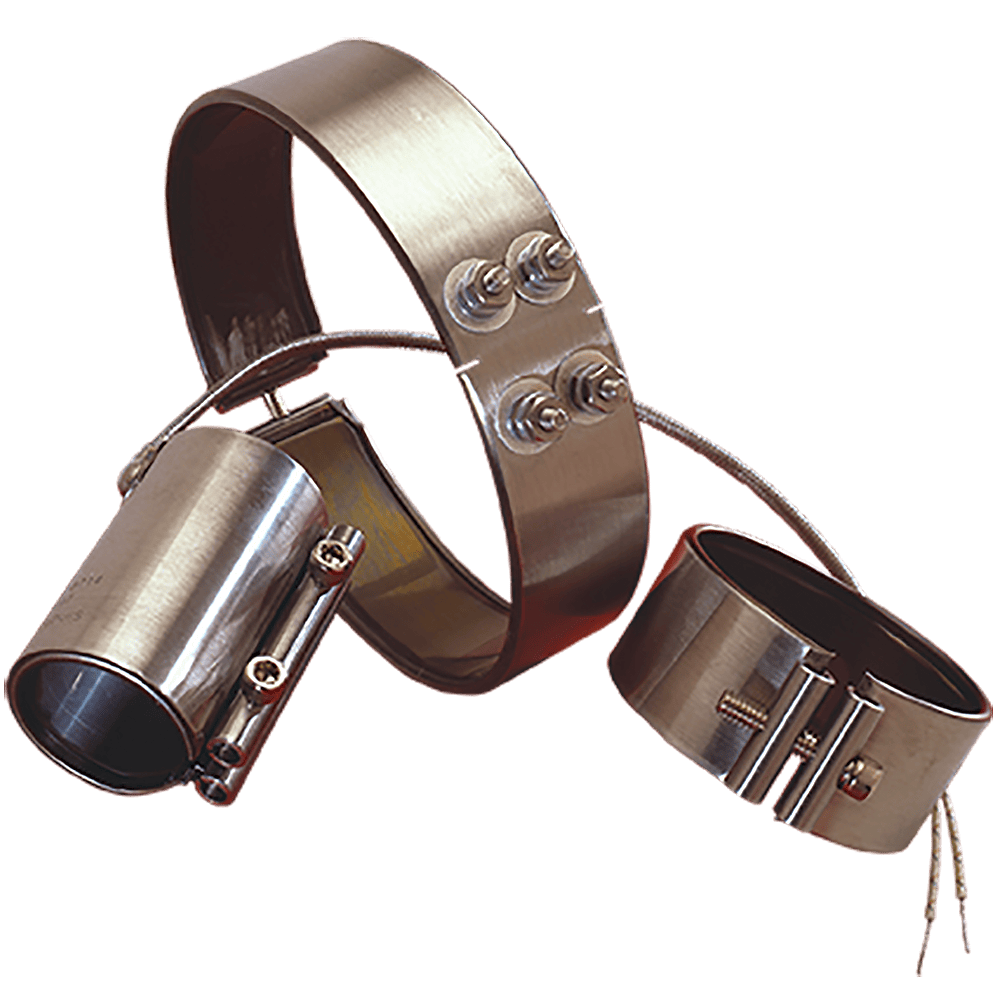

The Watlow MI Band is a high performance heater. Its performance and name are derived from Watlow’s exclusive mineral insulation–a material that has much higher thermal conductivity than the mica and hard ceramic insulators used in conventional heaters.

Watlow-MI-Band-spec

Current lead time is 8-10 weeks, FOB: St. Louis, MO.

SKU: N/A Categories: ,

All Variations

Part No.DescriptionPriceQuantityAdd to Cart
MB1J1JP4Barrel Band Heater$102.40
MB1J1JP6Barrel Band Heater$100.25
MB3A1AP1Barrel Band Heater$100.25
MB3A1JP1Barrel Band Heater$100.25
ME3A1JP10Barrel Band Heater$122.85
MB3J2AP2Barrel Band Heater$109.25
ME3L1JP5Barrel Band Heater$130.55
MB4A1AP1Barrel Band Heater$107.95
MB4A1JP2Barrel Band Heater$107.95
ME4A1JP11Barrel Band Heater$130.55
ME4A1JP12Barrel Band Heater$130.55
MB4J2JP1Barrel Band Heater$128.85
ME5A1JP8Barrel Band Heater$139.15
ME5E1JP1Barrel Band Heater$146.25
ME5E1JP9Barrel Band Heater$142.55
ME5E3AP5Barrel Band Heater$174.40
ME5E4JP2Barrel Band Heater$225.10
ME5E4JP3Barrel Band Heater$229.70
ME5J1JP1Barrel Band Heater$142.55
ME6A1JP2Barrel Band Heater$146.80
ME6J1JP5Barrel Band Heater$151.05
ME6N1JP6Barrel Band Heater$158.60
ME6N1JP7Barrel Band Heater$158.60
ME6N4AP2Barrel Band Heater$235.30
ME6N5AP3Barrel Band Heater$282.20
ME6N6AP5Barrel Band Heater$320.20
ME7A1JP4Barrel Band Heater$158.60
ME7J1JP4Barrel Band Heater$158.75
ME7L3AP1Barrel Band Heater$212.55
ME8A1JP4Barrel Band Heater$162.80
ME9A1JP1Barrel Band Heater$170.40
ME9J3AP2Barrel Band Heater$231.00
ME11E3AP2Barrel Band Heater$262.75
ME11E5AP1Barrel Band Heater$382.10

A thin layer of the “high” thermal conductive MI material is used to electrically insulate the element wire form the inside diameter of the heater sheath. A thicker, “low” thermal conductivity layer backs up the element wire, directing the heat inward towards the part that is being heated. The result is more efficient heat transfer… a performance solution that lowers element wire temperatures, increases heater life and lowers energy costs significantly!

  • Operating Temperatures to 1400°F (760°C) make it possible to safely melt even the newest resins, like PEEK, Teflon®, Ultem®, and Zytel®.
  • Higher watt densities than any other band (up to 230 W/in2) contribute to faster heat-up and through-put to increase productivity.
  • High thermal conductivity of MI and low mass construction give almost instant response to temperature control. This performance solution eliminates thermal lag and temperature overshoot associated with ceramic knuckle heaters.
  • Stainless steel cover as well as side fold design resist contamination by overflow of plastic or other free-flowing materials.
  • Permanently attached clamp bars eliminate cumbersome clamping straps, which makes installation easier.

SPECIFICATIONS:

Code No. I.D. (in.) Width (in.) Constr.** Volts Watts Watt
Density
MB1J1JP4 1-1/2 1-1/2 1 pc 240 300 64
MB1J1JP6 1-1/2 1-1/2 1 pc 240 450 96
MB3A1AP1 3 1 1 pc 240 400 54
MB3A1JP1 3 1-1/2 1 pc 240 500 40
ME3A1JP10 3 1-1/2 2 pc Exp. 230/460 525 53
MB3J2AP2 3-1/2 2 1 pc 240 800 42
ME3L1JP5 3-5/8 1-1/2 2 pc Exp. 230/460 650 51
MB4A1AP1 4 1 1 pc 240 700 62
MB4A1JP2 4 1-1/2 1 pc 240 800 48
ME4A1JP11 4 1-1/2 2 pc Exp. 230/460 625 43
ME4A1JP12 4 1-1/2 2 pc Exp. 230/460 725 50
MB4J2JP1 4-1/2 2-1/2 1 pc 240 1250 40
ME5A1JP8 5 1-1/2 2 pc Exp. 240/480 1000 52
ME5E1JP1 5-1/4 1-1/2 2 pc Exp. 240/480 1000 48
ME5E1JP9 5-1/4 1-1/2 2 pc Exp. 230/460 600 29
ME5E3AP5 5-1/4 3 2 pc Exp. 230/460 1700 40
ME5E4JP2 5-1/4 4-1/2 2 pc Exp. 230/460 2400 38
ME5E4JP3 5-1/4 4-1/2 2 pc Exp. 230/460 2700 43
ME5J1JP1 5-1/2 1-1/2 2 pc Exp. 240/480 1000 46
ME6A1JP2 6 1-1/2 2 pc Exp. 240/480 1000 41
ME6J1JP5 6-1/2 1-1/2 2 pc Exp. 240/480 1250 47
ME6N1JP6 6-3/4 1-1/2 2 pc Exp. 230/460 815 29
ME6N1JP7 6-3/4 1-1/2 2 pc Exp. 230/460 1000 36
ME6N4AP2 6-3/4 4 2 pc Exp. 230/460 2600 35
ME6N5AP3 6-3/4 5 2 pc Exp. 230/460 3700 40
ME6N6AP5 6-3/4 6 2 pc Exp. 230/460 3750 33
ME7A1JP4 7 1-1/2 2 pc Exp. 240/480 1250 43
ME7J1JP4 7-1/2 1-1/2 2 pc Exp. 240/480 1500 47
ME7L3AP1 7-5/8 3 2 pc Exp. 230/460 1800 28
ME8A1JP4 8 1-1/2 2 pc Exp. 240/480 1250 37
ME9A1JP1 9 1-1/2 2 pc Exp. 240/480 1500 39
ME9J3AP2 9-1/2 3 2 pc Exp. 230/460 3000 37
ME11E3AP2 11-1/4 3 2 pc Exp. 230/460 2400 24
ME11E5AP1 11-1/4 5 2 pc Exp. 230/460 5100 31
Weight N/A
Part No.

MB1J1JP4, MB1J1JP6, MB3A1AP1, MB3A1JP1, ME3A1JP10, MB3J2AP2, ME3L1JP5, MB4A1AP1, MB4A1JP2, ME4A1JP11, ME4A1JP12, MB4J2JP1, ME5A1JP8, ME5E1JP1, ME5E1JP9, ME5E3AP5, ME5E4JP2, ME5E4JP3, ME5J1JP1, ME6A1JP2, ME6J1JP5, ME6N1JP6, ME6N1JP7, ME6N4AP2, ME6N5AP3, ME6N6AP5, ME7A1JP4, ME7J1JP4, ME7L3AP1, ME8A1JP4, ME9A1JP1, ME9J3AP2, ME11E3AP2, ME11E5AP1
