Temposonics Position Transducers – The Temposonics brand name was on the original magnetostrictive position sensor invented in 1970. This legacy, a wealth of practical industry experience, and an installed base of over one million units is behind every Temposonics sensor. Temposonics linear-position sensors use the time-based magnetostrictive position sensing principle. The position of the magnet is determined with high precision and speed by accurately measuring the elapsed time between the application of the interrogation pulse and the arrival of the resulting strain pulse with a high-speed counter. The elapsed time measurement is directly proportional to the position of the permanent magnet and is an absolute value. Therefore, the sensor’s output signal corresponds to absolute position, instead of incremental, and never requires recalibration or re-homing after a power loss. Absolute, non-contact sensing eliminates wear, and guarantees the best durability and output repeatability.

** Temposonics product pages are still under construction and all are not available to order online-to order or for assistance, please email-SALES@WESTCOASTPLASTICS.COM
Try our BUILD-A-PRODUCT pages to order the Temposonics unit you need:

Temposonics RH5 SSI Hydraulic Rod Style Transducer Build-A-Product
Temposonics RH5 Analog Hydraulic Rod Style Transducer Build-A-Product
Temposonics G-Series Hydraulic Rod Style Transducer Build-A-Product
Temposonics G-Series Profile Style Transducer Build-A-Product
Temposonics E-Series Profile Style Transducer Build-A-Product
Temposonics E-Series Hydraulic Rod Style Transducer Build-A-Product
Temposonics E-Series Rod & Cylinder Style Transducer Build-A-Product
Temposonics Extension Cables
Temposonics Transducer Magnets
Temposonics Transducer Accessories


Temposonics® R-Series V brings very powerful sensor performance to meet the many demands of your application. The R-Series V is the long term solution for harsh environments that have high levels of shock and vibration. Temposonics® R-Series V sensors are available with internal linearization which offers improved linearity for overall higher accuracy of the position
measurement value. With many outstanding features, the R-Series V model sensors are ideal for a very broad range of applications.

Temposonics RH5 SSI Spec
Temposonics RH5 Analog Spec

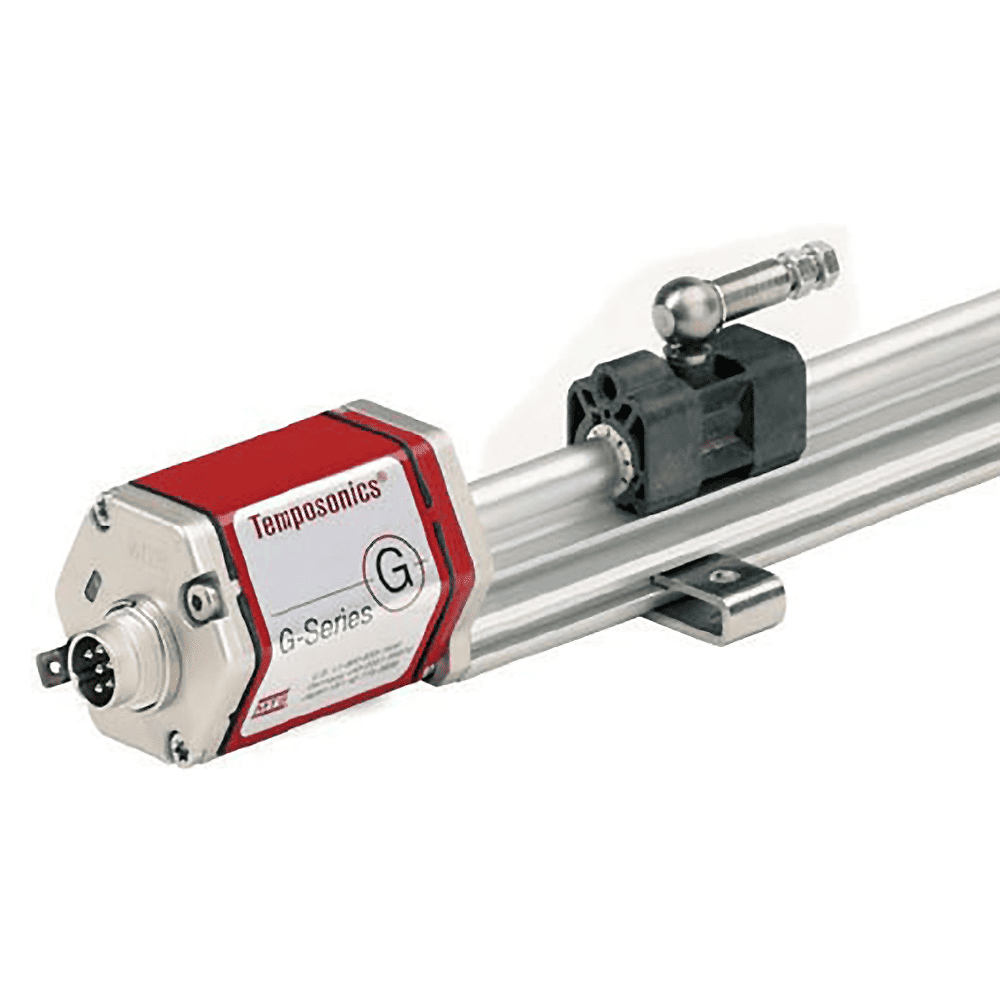

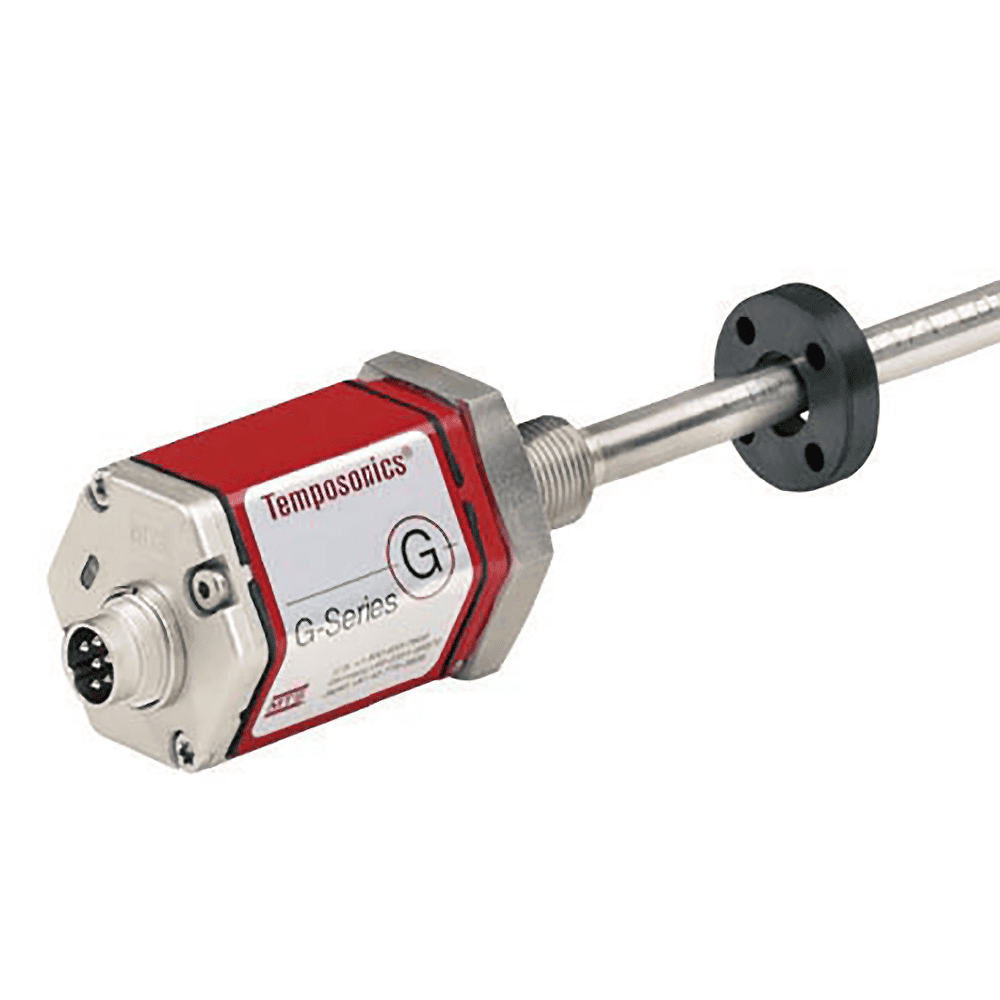

Temposonics G-Series sensors feature a microprocessor-based design with enhanced diagnostics and programmability offering the flexibility to fit a wide range of applications. The sensor’s head contains the active signal conditioning and a complete integrated electronics interface. Double shielding is used to ensure EMI protection for unsurpassed reliability and operating safety. G-Series model GH and GP sensors are extremely robust and are ideal for continuous operation under harsh industrial conditions. Backward compatibility with upgraded performance is one of the primary benefits of choosing a G-Series sensor. The G-Series sensor provides the same functionality as our legacy Temposonics I, II and L-Series sensor products which make it an ideal direct replacement. Temposonics offers two standard sensor housings, rod and profile extrusion. The rod housing is capable of withstanding high pressures such as those found in hydraulic cylinders. The profile extrusion housing provides convenient mounting options and captive sliding magnets which utilize slide bearings of special material that reduce friction, and help mitigate dirt build up.

Temposonics G-Series Spec

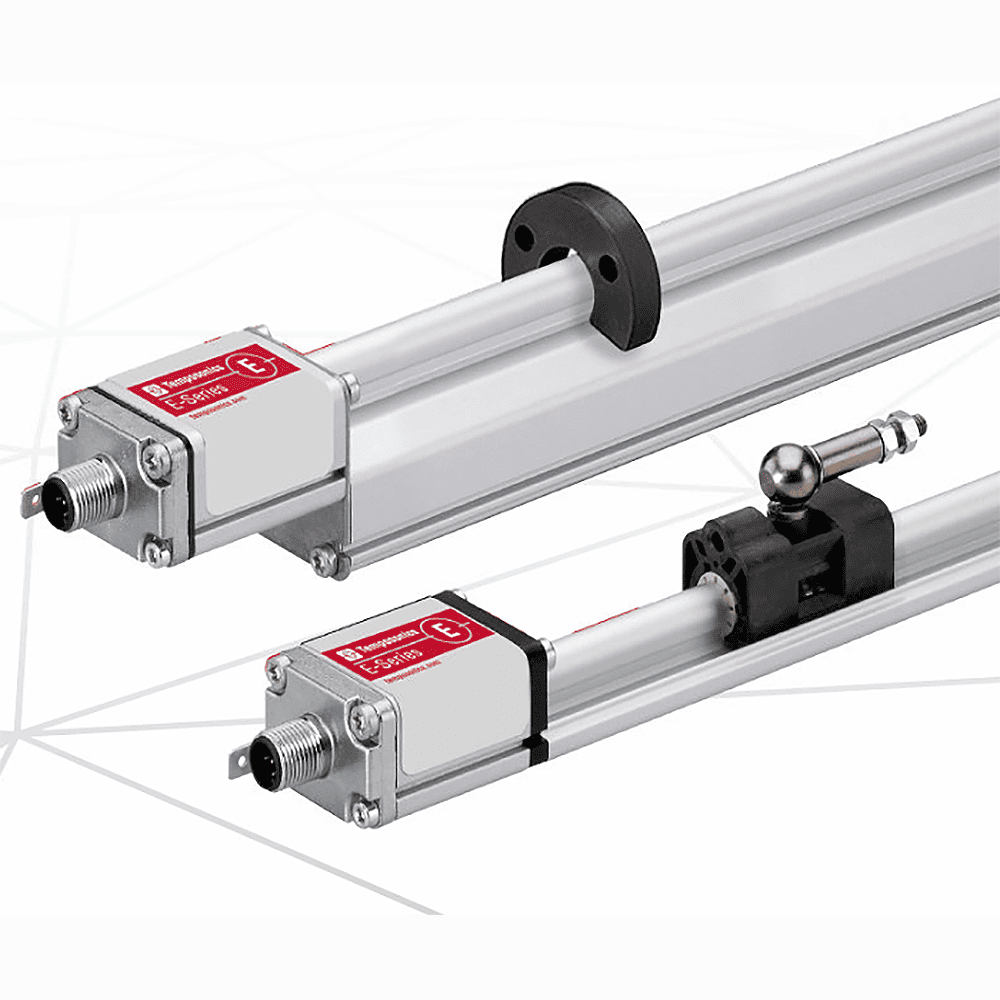

Temposonics E-Series – Economically Priced, Good resolution (to .002), Analog (voltage & current) & Digital Outputs (start/stop). Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and precise position measurement feedback in harsh industrial environments. Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by Temposonics.

Temposonics E-Series Analog Profile Style Transducer Spec
Temposonics E-Series Analog Hydraulic Rod Style Transducer Spec
Temposonics E-Series Analog Rod & Cylinder Style Transducer Spec
