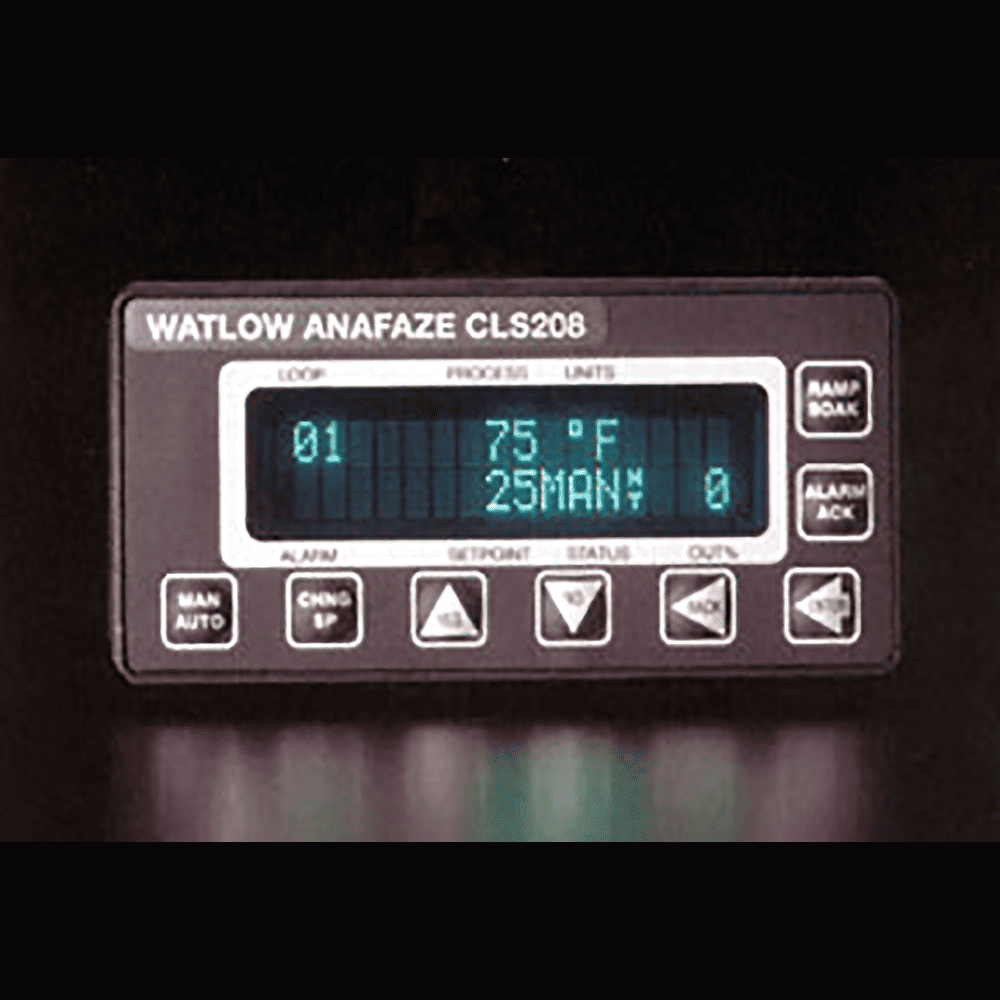

The Watlow Anafaze CLS200 Series is a powerful line of multi-loop controllers, combining performance and flexibility with compact design. The 4, 8, and 16 loop versions can provide a complete control solution for a broad range of applications. Support for multiple types of sensor inputs is available, including thermocouples, RTDS, linear voltage, current and frequency. Each can operate as a stand-alone system, and includes built-in serial communications for computer interface and data acquisition. Optional programmable ramp and soak features allow complex batch processing and sequencing. An enhanced features option offers cascade control, ratio control, differential control, process variable retransmit, and remote analog set point.FEATURES & BENEFITS:
PID control of up to 16 heat and cool loops
- Minimal panel space per loop
- Reduced installation time
- More reliable: fewer parts means fewer failures
Auto-tune
- Less time tuning
- Achieve excellent control with less expertise
Menu-guided operation with full text display
- Setup controller quickly
- Easy to operate
Eight jobs stored and recalled
- Quick to change from one process to another
Multiple and mixed inputs
- Easy to change sensor types at the last minute
- Less to learn, less inventory
Sensor failure detection
- Reduce time troubleshooting reversed, shorted and open sensors
High/low process and deviation alarms for each input
- Configure alarms as needed to integrate with PLC or other control elements
34 digital outputs
- Flexible configuration: use outputs as needed for control and alarms
TIA/EIA-232 and 485 communications
- Use software to configure and operate
- Integrate with other controllers and software
MODEL NUMBER GUIDE:
| 2 | __ | __ | – | __ | __ | 0 | __ | – | __ | 0 | 0 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| 1-3. Control Model | |
| 208= Series 204 – 4-Loop Controller, 1/8 DIN | |
| 208= Series 208 – 8-Loop Controller, 1/8 DIN | |
| 216= Series 216 – 16-Loop Controller, 1/8 DIN | |
| 4. Controller Type | |
| 1 = Standard EPROM | |
| 3 = Ramp and soak option | |
| 4 = Enhanced features option (includes cascade, PV retransmit, ratio, remote set point. | |
| 5. Terminal Board | |
| 0 = SCSI connector, customer supplies terminal board and cable | |
| 1 = 18-pin terminal block mounted on unit, no SCSI cable required | |
| 2 = 50-pin terminal board | |
| 6. Power Supply (choose 0 or 2) | |
| 0 = No power supply | |
| 7. SCSI Cables (for use with 50-pin terminal board) | |
| 0 = No special SCSI cable | |
| 1 = 3-foot SCSI cable | |
| 2 = 3-foot right angle SCSI cable | |
| 8. Communications Cable (for EIA/TIA-232 communications with computer) | |
| 0 = No communications cable | |
| 1 = 10-foot communications cable (DB-9 female/bare wire) | |
| 9. Serial Communications Jumper Settings (choose 0, 1 or 2) | |
| 0 = EIA/TIA-232 | |
| 1 = EIA/TIA-485 | |
| 2 = EIA/TIA-485 terminated | |
| 10-11. Inputs | |
| 0 = Thermocouples on all loops for Models 204 & 208 | |
| 00 = Thermocouples on all loops for Model 216 | |
204-1000000 | 204-1100000 | 208-1100000 | 208-1201000 | 216-10000000 | 216-12010000
